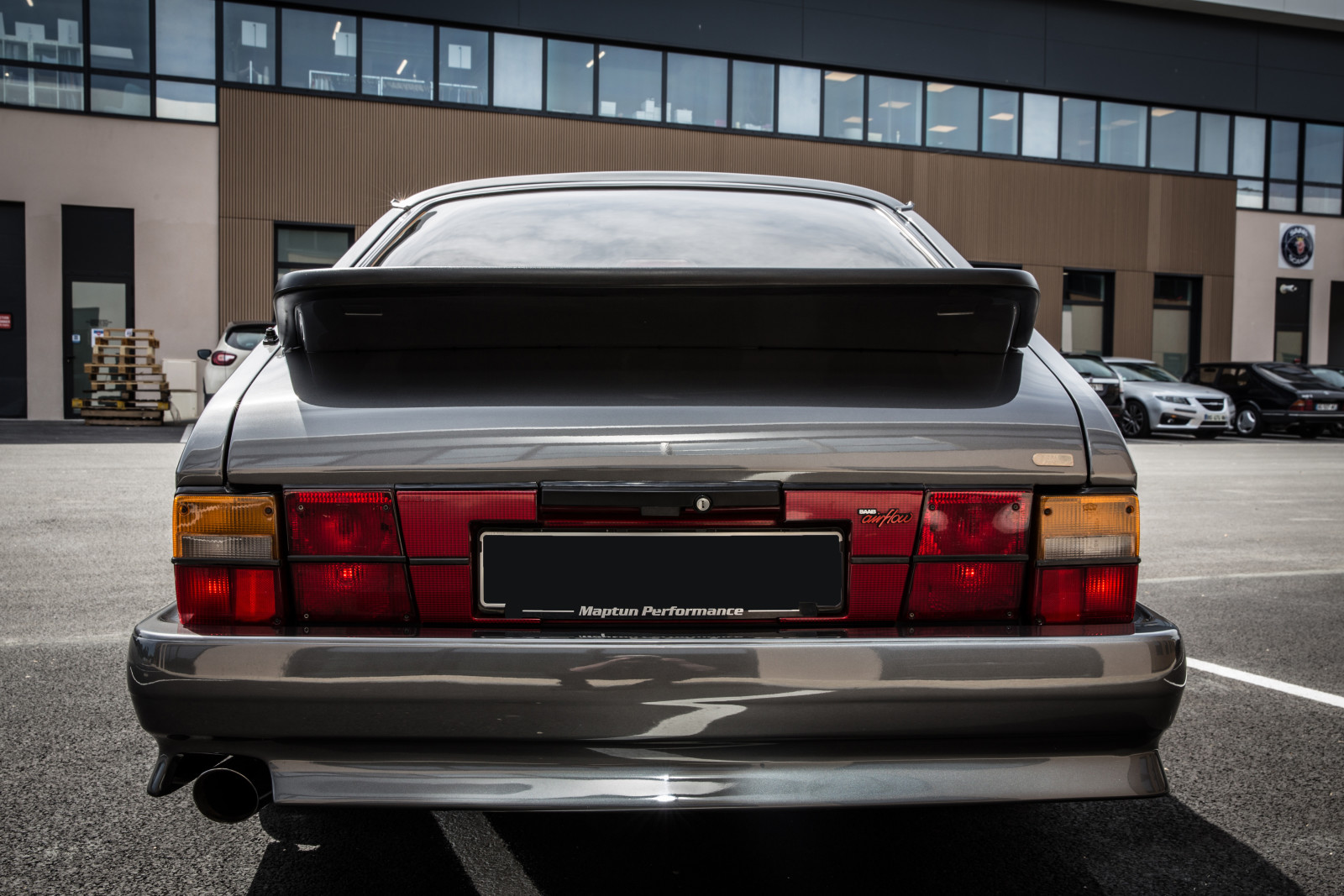

SAAB 900 Turbo 16s RBM

Caracteristiques

  • Brand : saab
  • Body : 3 door
  • Model : Turbo 16s line
  • Motor : 2.0 Turbo 16 valves
  • Power : 401
  • Year : 1989
  • Transmission : Manual gearbox
  • Fuel : Bioethanol E85 or unleaded
VEHICLE DESCRIPTION

SAAB 900 TURBO 16 RBM performance (Model Year: 1989)

- Power: 401 hp. at 6006 rpm * at E85 (360 hp unleaded 98)

- Maximum torque: 490 nm at 5007 rpm (370 nm from 3010 rpm)

- Max rpm: 6900 rpm

- Boost pressure: 1.6 bar

- Compression ratio: 8.8: 1

- Engine size: 1985 cc

- Fuel: E85 or unleaded petrol 95 or 98 (conversion carried out by MapTun Performance)

- Performance: Maximum speed: more than 270 km / h

* with E85 superethanol




Motor:

- New original engine block (B202L) with mahle pistons

- Balanced flywheel and crankshaft

- Head Cylinder of saab 9000 2.3 liters Turbo reworked (larger valves 32 and 34mn in stellite) enlarged exhaust and intake ducts and work on the combustion chamber, reinforced valve springs.

- Bigger intake manifold (from 900 2.1 liters)

- Large volume aluminum air / air exchanger mounted in front of the radiator

- GT28RS turbocharger with integrated reinforced Wastegate Forge

- Forge reinforced dump valve

- Dynamic intake kit with carbon air box

- Complete race free exhaust system in 3 inches diameter, made in 304 stainless steel.

- Custom 4/1 stainless steel sport exhaust manifold

- 3.0 bar fuel pressure regulator instead of 2.8 bar.

- High flow fuel injectors (630cc)

- Specific high capacity fuel pump

- Complete installation of the saab TRIONIC 5 electronic engine management system (diagnostic socket included!)

- Complete custom engine management software made on ROTOTEST at MapTun in Sweden




Suspension:

- Ground clearance lowered by 25mm. Harder and shorter springs.

- Sachs sport gas shock absorbers at the front and adjustable Koni at the rear

- reinforced suspension bushes



Braking:

- RBM performance front big brake kit with 6 piston front calipers and grooved sport discs 300 mm in diameter, grooved discs at the rear.

- Sport pads and aviation hoses.



Transmission:



- Reinforced dry disc clutch supports more than 500 nm of torque

- Custom 5-speed gearbox, reinforced with limited slip differential

- RBM performance type 9 primary shaft pinion kit



Wheels: SAAB “aero” three-spoke 16-inch aluminum rims or bespoke 17-inch forged Aero rims by RBM performance

Tires: 205/50 ZR 16




Exterior:

- "Airflow" front and rear bumpers (option in the catalog at the time).

- White front turn signals and smoke repeaters or turn signals and orange repeaters as originally.

- Large "Whale tail" fin (option in the catalog at the time)

- Rear (reflective) decoration panel (option in the catalog at the time)




Interior:

- Dashboard, glove box, and central console, in precious wood "made to measure"

- Nardi three-spoke steering wheel in leather (or wood) and steel rims (option at the time)

- Alcantara headliner and interior doors

- Black leather door handles
